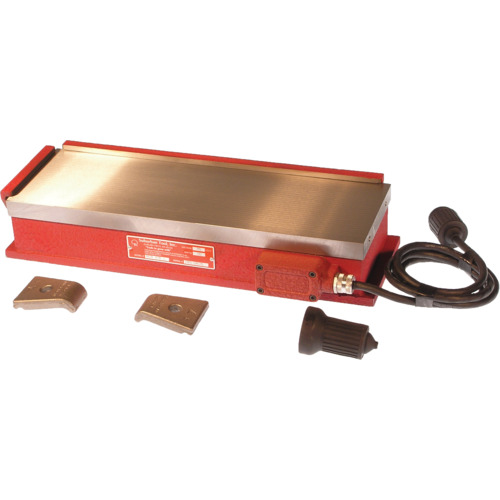

Electromagnetic Chuck with Transverse Poles - Model EMCB612T; 6″ × 12″
| Shape | Rectangular | Pole Type | Transverse |
| Length | 12″ | Type of Power | Electric |
| Width | 6″ | Weight | 75 lbs |
| Height | 3 1/2″ | Watts | 72 |
Product Features
| Remarks | •Transverse Pole Chucks Poles Run Side To Side Longitudinal Pole Chucks Poles Run End To End •The top plates on the chucks up to 10″ × 24″ are laminated from 1/8″ steel poles and 1/32″ stainless steel spacers, then furnace brazed to form one solid piece. •The larger chucks use 1/4″ steel and 1/8″ stainless steel. •Either longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size and shape of the parts you are holding. •All of Suburban s max-E-mag rectangular electromagnetic chucks are sealed against dirt and liquids. | Country of Origin | USA |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Length
17.00000
Package Width
11.00000
Package Height
9.00000
Package Weight
75
