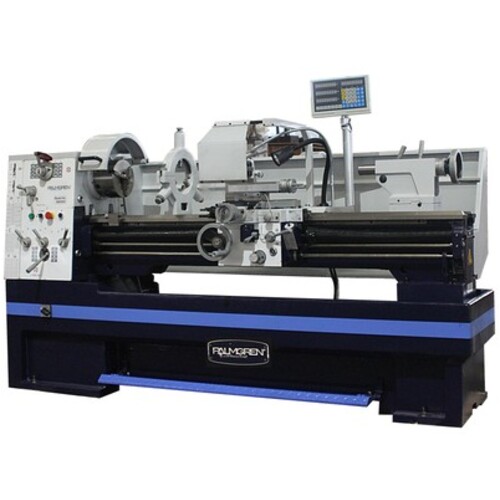

16 × 60″ LATHE ENGINE DRO 230V 3PH
| Swing Distance | 16″ | Spindle Taper | 6MT |
| Distance Between Centers | 60″ | Mount | MT6 |
| Horsepower | 6 hp | Minimum Spindle Speed | 45 RPM |
| Voltage | 230 V | Maximum Spindle Speed | 1,800 RPM |
| Phase | 3 Phase | Weight | 3,443 lbs |
| Cross Slide Travel | 9″ | Model No | 84524 |
Product Features
| Remarks | •Machine comes standard with a DRO and glass scales.•All the gears are helical precision cut, hardened and ground running in a continual bath of oil.•The main spindle is made of high alloy steel and mounted in precision taper roller bearings.•The wide bed ways are made of stabilized cast iron, ground and hardened.•The universal gear box delivers a broad range of feed and thread selections and each machine can do both inch and metric threads.•Built and inspected to the DIN 8606 toolmakers precision lathe standard.•3 Year Warranty. | Country of Origin | China |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
3443
