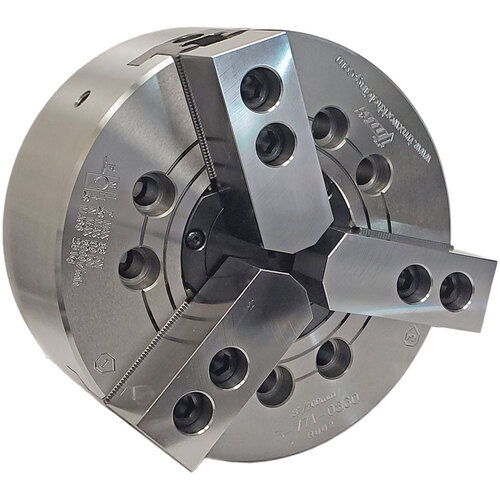

3-Jaw Extra Large Hole Power Chuck, Direct Mount A2-6, 10″
| Type | Open | Maximum RPM | 4,200 |
| Number of Jaws | 3 | Chuck Height | 4.449″ |
| Chuck Size | 10″ | Minimum Gripping Diameter | 1.220″ |
| Mount | A2-6 | Maximum Gripping Diameter | 10.000″ |
| Through-Hole Diameter | 3.220″ | Jaw Stroke | 0.334″ |
| Chuck Style | Power | Plunger Stroke | 0.787″ |
| Weight | 264.555 lbs | Max. Gripping Force | 26,986 lbs |
| Model No | 37711060 |
Product Features
| Remarks | •Supplied with spindle mounting plate, Semi-finished draw nut, draw nut wrench, set of soft top jaws, set of t-nuts, wrenches for chuck installation and operation. •Low cost direct replacement for major OE brands •High performance and great value •Use existing top jaws 1.5mm × 60° serrations •Hardened and ground critical surfaces for long life and high accuracy •Large thru hole •1 Year Warranty | Country of Origin | S.Korea |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
85
