16 × 40 × 16 3-Axis Knee Milling Package
| Type | Digital Readout System | Y-Axis Stage Travel | 40″ |
| X-Axis Stage Travel | 16″ | Machine Compatibility | Milling Applications |
Product Features

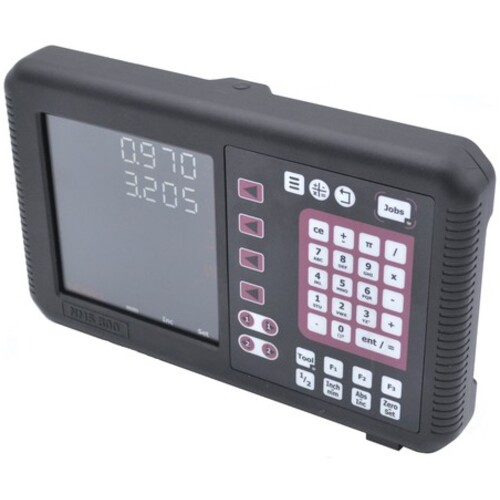

| Remarks | •NMS800 DRO Display - 2 Axis•Encoder Assemblies•Spherosyn Serial Reader Heads•Spherosyn® Serial Scales•Scale Support Brackets•Mounting Bracket Kit•Display Moutning Arm•NMS800 Features•Datum preset/reset•Inch/mm• Abs/Inc•Ref location•½ function•Linear and segmented error comp per axis•Radius/diameter axis setting•RPM display for rotary encoder input•Standard calculator functions•Tool change (new operation); Sets the current tool type, offsets, diameter, etc•Display message (new operation);Will display a text message to the screen (mainly for use in Jobs)•Bolt hole/PCD;Selectable start and end angle (for full or partial circles)• Line/Grid; Selectable angle; Selectable number of holes X direction (line); Optional number of holes Y direction (grid)•Arc contour/Incline; Selectable plane (X-Y, Y-Z, X-Z); X-Y plane would be like current Arc contour; Y-Z and X-Z would cover incline (arc going up instead of flat)•Taper calculator•Slot; Selectable start point, orientation (X or Y axis) and length; Slot width determined by current tool diameter•Pocket/Island; Selectable width, height and location; Pocket will compensate tool inside W and H; Island will compensate tool outside W and H•Lathe vectoring | Country of Origin | GB |
Shipping Info
Package Weight
38.0000
