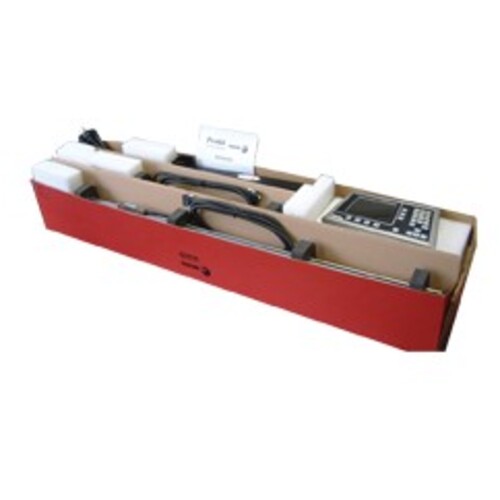

Digital Readout System - Model PROKIT2; 2-Axis; 12″ × 36″ Series ProKit; For Milling Applications
Additional Tariff Surcharge of 7 %
| Type | Digital Readout System | Machine Compatibility | Milling |
| Number of Axis | 2 | Display Type | 20i |
| X-Axis Stage Travel | 12″ | Model No | PROKIT2 |
| Y-Axis Stage Travel | 36″ | For Use With | Milling Applications |
Product Features
| Remarks | •Bolt-hole drilling The DRO automatically calculates the position of the holes as the operator enters the data requested by it. •Linear drilling calculation It calculates, memorizes the position and guides the operator when executing linear drilling operations at any angle with respect to the axes with a fixed gap between holes. •Tool radius compensation In a milling operation with a rounded tool, its radius must be taken into account and it must be added to or subtracted from the position value depending on the machining direction. Once the tool value is entered, it is saved in the DRO's memory. •Part centering By touching two points of the part with the tool or with a probe,the DRO can calculate the center of the part by simply pressing a key. •Up to 20 part zeros (datum points) This feature makes it easier to work with several part zeros and may be used to save tool data and hole positions. The DRO offers greater flexibility to the operator. •Part angle This feature offers the possibility to measure angles in order to avoid part alignment errors. Thus, the inclination of the part may be corrected to obtain the right position. •Corner rounding / machining of arcs To be used in simple corner rounding or surfaces in arc in a plane defined by two linear axes. | Country of Origin | Spain |
Shipping Info
Package Weight
22
