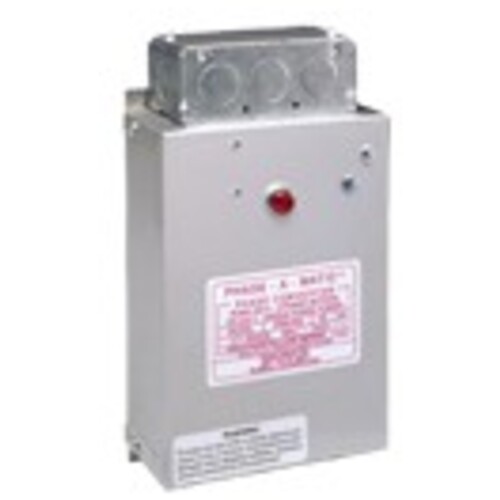

Heavy Duty Static Phase Converter – Model PAM-600HD; 3 hp–5 hp
| Type | Heavy Duty Static Phase Converter | Horsepower | 3 hp-5 hp |
Product Features
| Remarks | •RUNS MOTOR LOADS ONLY AT 2/3 RATED HP •HOW TO SIZE: The largest motor on your machine must fall within the minimum and maximum range of the converter Do not order a larger unit or Heavy Duty model thinking it will give more horsepower •WHEN TO USE HEAVY DUTY: Heavy starting loads (lathes, flywheel driven equipment,etc.) Instant reversing, frequent starting, jogging Air compressors (motor pulley must be reduced by 1/3 in diameter) •HEAVILY LOADED EQUIPMENT: For pumps, fans, blowers, direct-drive compressors, or equipment requiring greater than 2/3 of its rated HP, you must USE A PHASE-A-MATIC ROTARY CONVERTER. | Country of Origin | USA |
Shipping Info
Package Length
10.80000
Package Width
6.10000
Package Height
3.90000
Package Weight
3.2
