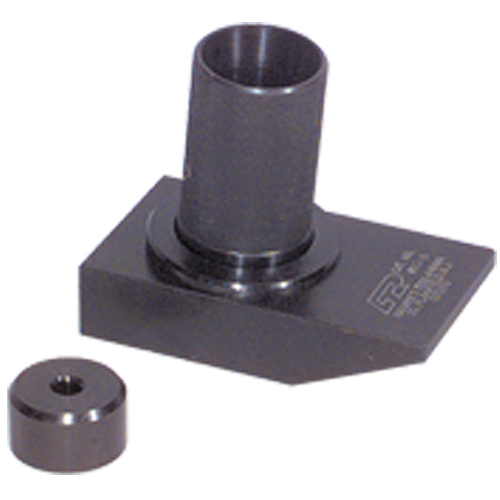

End Mill Grinding Fixture - 5C Collet Style
| Type | End Mill Grinding Fixture | Base Length | 4 1/2″ |
| Capacity | 1/8″ | Base Width | 2 1/2″ |
| Mounting Type | 5C Collet |
Product Features
| Remarks | •Uses 5C Collets •This fixture uses 5C Collets (no more bushings to lose) which means any shank size end mill from 1/16 to 1–1/8 can be ground. •Shell mills can be easily held with straight shank arbors. •To grind primary relief and center relief, place end mill in fixture and grind one flute; then index to grind opposite flute. •This will give a 5° primary end relief angle. •Grinds 2–3–4–6–8 and 12-fluted end mills and shellmills. •Clearance and relief angles are built into base •Solid 2–1/2 4–1/2 . Base ground on bottom for sure contact with magnet •Black oxide finish | Country of Origin | China |
Shipping Info
Package Length
4.70000
Package Width
4.10000
Package Height
2.90000
Package Weight
3.05
