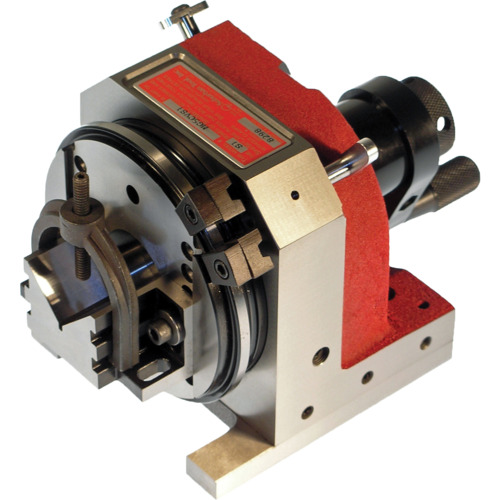

Master Grind Collet Fixture - Model MG5CVS1; 5C Collet Style

| Type | Master Grind Collet Fixture | Base Width | 4″ |
| Capacity | 1 1/4″ | Center Height | 3″ |
| Mounting Type | 5C Collet | Overall Height | 5 1/2″ |
| Model No | MG5CVS1 | Spindle TIR | 0.00005″ |
| Base Length | 5″ | Weight | 32 lbs |
Product Features
| Remarks | •Twin-Dex combination 5-C collet and V-block in one fixture.
•Horizontal or vertical V-block mounting.
•72-Position index plate for hard index every five degrees.
•Two heavy duty 4″ diameter tapered roller bearings in spindle.
•Extra large 1–5/8″ V-block capacity.
•Built-in sine bar for setting angles between hard index locations.
•Square and parallel within .0002″.
•Sine set compatible.
•Fitted wooden case included. | Country of Origin | USA |
Shipping Info
Package Length
14.30000
Package Width
10.50000
Package Height
10.80000
Package Weight
28.15
