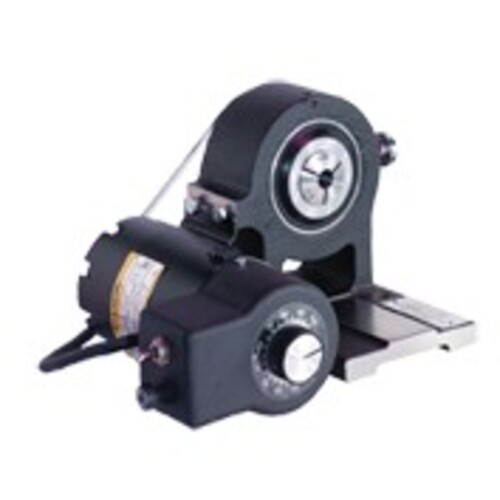

Motorized Spin Indexer - Model 120100; 5C Collet Style
| Type | Motorized Spin Indexer | Center Height | 4 1/8″ |
| Mounting Type | 5C Collet | Weight | 17 lbs |
| Model No | 120100 |
Product Features
| Remarks | •Motorized 5C Spin Indexer •Sturdy and dimensionally stable cast iron housing. •Large preloaded ball bearings are durable and accurate - ideal for motorization. •5C collet holder ground in assembly to under 0.0001 runout. •24 Division index plate with precision index pins locks in every 15° to /–30 seconds •Draw sleeve for quick set-ups of collets and accessories. •Extended base for minimal deflection even with heavier parts. •1/4 Diameter mounting hole on top of housing for diamond dresser. •Collet: 5C up to 1 •24 division indexing: /–30 seconds •Spindle runout: 0.00001 •Spindle parallel to base: 0.0002 in 6 •Motor: 1/15HP 110V AC •Variable speed: 50–450 RPM | Country of Origin | USA |
Shipping Info
Package Length
14.50000
Package Width
11.20000
Package Height
8.50000
Package Weight
25.85
