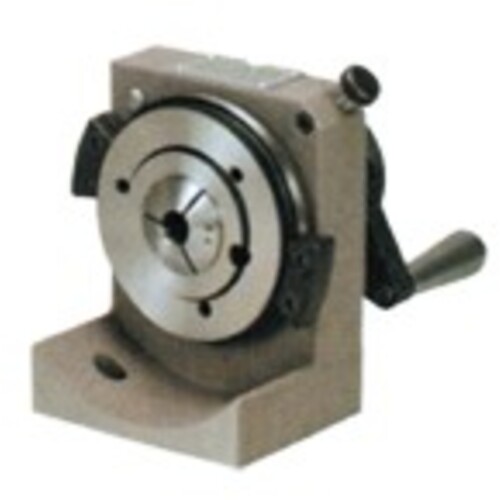

Ultra-Dex Collet Fixture - Model 070–100; 5C or 5ST Collet Style

| Type | Ultra-Dex Collet Fixture | Center Height | 3″ |
| Mounting Type | 5C or 5ST Collet | Weight | 10.5 lbs |
| Model No | 070-100 |
Product Features
| Remarks | •Designed and built to "tenths" accuracy, the new Harig Uni-Dex is unequaled anywhere in a universal collet fixture. Hardened and ground throughout, its integral preloaded ball and race bearing, and 24 division index arrangement delivers extreme positioning accuracy and precision. Tool steel housing and extended base provide exceptional rigidity and minimal deflection, even with heavier work pieces or magnetic chuck, face plate and 3-jaw chuck accessories. Comes with carrying case.
•Runout with 5-C collet: 0.000050
•Index accuracy: 10 seconds
•Thru hole: 1–1/4
•Index divisions: 24
•3-Jaw chuck hole: 3/4 | Country of Origin | USA |
Shipping Info
Package Weight
15
