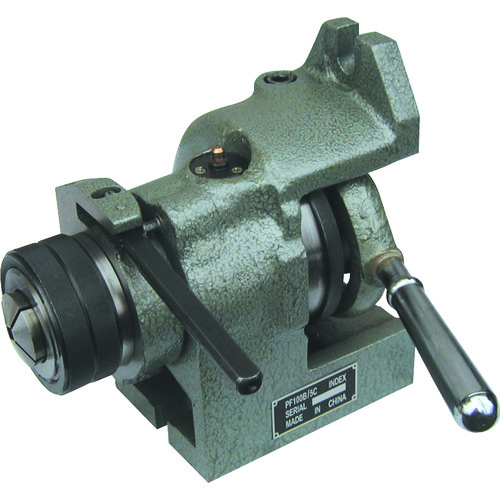

Horizontal/Vertical 5C Indexing Fixture

| Type | Horizontal/Vertical 5C Indexing Fixture | Base Width | 4″ (Horizontal); 4″ (Vertical) |
| For Use With | Collets (5C 1-1/8 capacity) and lathe chucks | Center Height | 4″ |
| Mounting Type | 5C Collet | Overall Height | 7 3/4″ (Horizontal); 8″ (Vertical) |
| Base Length | 8″ (Horizontal); 6″ (Vertical) | Weight | 30 lbs |
Product Features
| Remarks | •A rapid indexing fixture for use with both Collets (5C 1–1/8 capacity) and lathe chucks
•The latter may be fitted to the 2–1/4–8 threaded spindle
•These fixtures are designed to be mounted vertically or horizontally. Indexing is accomplished by releasing the spring loaded index pin lever
•The spindle rotates freely until the next open space when the index pin engages again and locks the spindle. | Country of Origin | China |
Shipping Info
Package Length
11.50000
Package Width
9.90000
Package Height
9.70000
Package Weight
30.6
