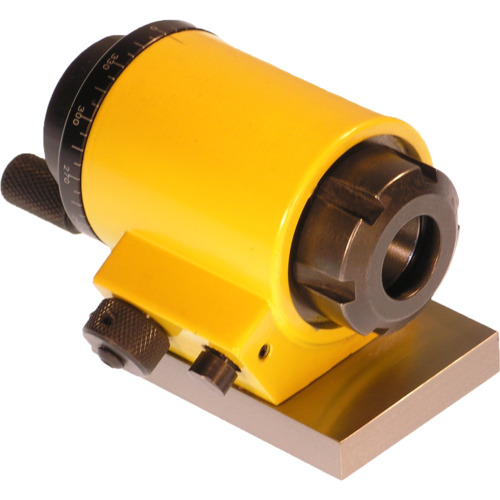

Mini-Master Index Fixture - Model MM25R; ER25 Collet Style
| Type | Mini-Master Index Fixture | Included | Fitted wooden case |
| For Use With | Small machine setups | Overall Height | 3″ |
| Mounting Type | ER25 Collet | Spindle TIR | 0.00020″ |
| Model No | MM25R | Weight | 4 lbs |
Product Features
| Remarks | •3″ Height is ideal for small machine setups •Weight only 4 pounds for easy handling •72-Position index plate allows an index every 5 degrees •5/8″ Through hole in spindle •Uses standard ER–25 spring collets •Spindle runs in two sealed preloaded bearings •Spindle can be secured by stop button for easy tightening of collets •Hardened steel base plate is ground square and parallel with spindle axis within 0.0002″ •Fitted wooden case included | Country of Origin | USA |
Shipping Info
Package Length
9.00000
Package Width
9.00000
Package Height
7.00000
Package Weight
5.37
