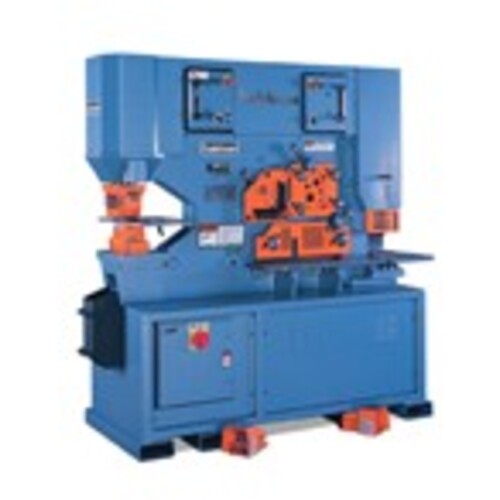

Dual Operator Fully Integrated Ironworker - 85 Ton; 14″ Throat; 10HP, 3PH, 230/460V Motor
| Tonnage | 85 ton | shear_capacity_angle_90deg | 6″ × 6″ × 1/2″ |
| Throat Depth | 14″ | shear_capacity_angle_45deg | 4″ × 4″ × 1/2″ |
| Phase | 3 Phase | Rod Shear | 1 1/2″ |
| Voltage | 230 V/460 V | Model No | D08514 |
| Punching Capacity | 1 1/16″ in 1″ | Weight | 5,400 lbs |
| Rectangular Notching Capacity | 2″ × 4″ × 1/2″ | Horsepower | 10 hp |
| Flat Bar Shear Capacity | 1″ × 16″, 3/4″ × 20″ |
Product Features
| Remarks | •Dual Operator & Fully Integrated Machines •Dual Operation, allows two operators to work at the same time (DO Machines Only), Keyed Punch Ram for Safe and Positive Punch Alignment, Angle Shear, Bar Shear comes complete with 4 cutting edges, Low Rake Angle, Rectangular Notcher, Tool Table Work Area for optional tooling, Adjustable Stripper, Jog Control, Remote Foot Pedals (2 on DO Models), Electric Stroke Controls (2 on DO Models), Die Holder complete with 2″ Die Insert, Jam Nut with Wrench, Punch Gauging Table with Fence & Scale, Shear Table with Miter Fence, Notcher Table with Guides,Two Pumps (DO Model), Electrical box supplied with Emergency Palm Button and Lock-out Tag-out Accommodations, 230/460 volt 3 Phase Electrics, All guards necessary to comply with ANSI B 11–5 Standards •1 Year Warranty | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
5400
