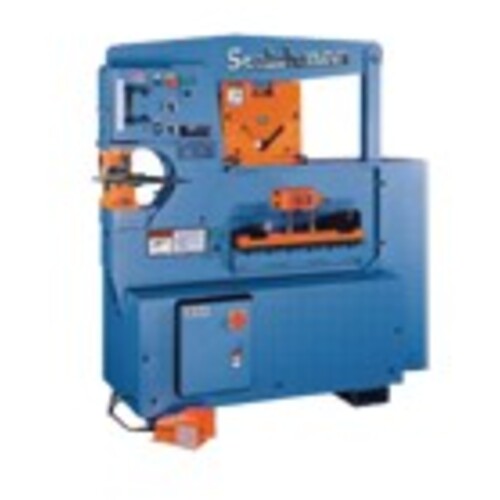

Ironworker - 65 Ton; 9″ Throat; 5HP, 3PH, 220V Motor
| Tonnage | 65 ton | shear_capacity_angle_45deg | 4″ × 4″ × 1/2″ |
| Throat Depth | 9″ | Square Tube Shear | 1/2″-2″, 12 ga |
| Phase | 3 Phase | Rod Shear | 1/4″ to 1 1/4″ |
| Voltage | 220 V | Model No | 6509-24M |
| Punching Capacity | 1 1/6″ in 3/4″ | Weight | 2,750 lbs |
| Flat Bar Shear Capacity | 1″ × 6″, 3/4″ × 10″, 1/2″ × 12″, 3/8″ × 16″, 1/4″ × 24″ | Horsepower | 5 hp |
| shear_capacity_angle_90deg | 6″ × 6″ × 3/8″ |
Product Features
| Remarks | •Standard Features-Component Machines: Keyed Punch Ram for Safe and Positive Punch Alignment, Angle Shear, Bar Shear comes with blades complete with 4 cutting edges, Tool Table Work Area for Mounting Optional Tooling, Remote Foot Pedal (except 5014CM and 5014TM), Adjustable Stroke Controls, Emergency Palm Button and Lock-Out Tag-Out Accommodations, Forklift Accommodations, Manual & Parts List.All guards necessary to comply with ANSI B 11–5 Standards.One Year Warranty, Manual & Parts List Optional Tooling: Punches and Dies, Press Brakes 8″, 12″, and 24″, Channel Shear, Rod Shear, Tube Shear, Square Notcher, V-notcher, Pipe Notcher and Picket Tool,Offset Die Holder, 6″ × 6″ Die Holder, Open End Brake, Jog Control. •The most complete and versatile line of ironworkers manufactured. Tonnage ranging from 45 to 120 tons. | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
2984
