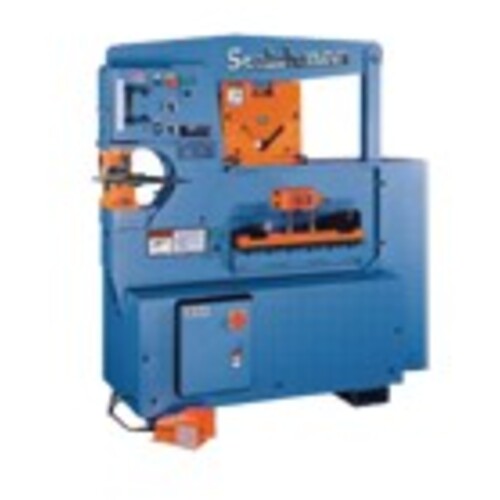

Ironworker - 120 Ton; 12″ Throat; 5HP, 3PH, 220V Motor
| Tonnage | 120 ton | shear_capacity_angle_90deg | 6″ × 6″ × 1/2″ |
| Throat Depth | 12″ | shear_capacity_angle_45deg | 4″ × 4″ × 1/2″ |
| Phase | 3 Phase | Model No | 12012-24M |
| Voltage | 220 V | Weight | 5,200 lbs |
| Punching Capacity | 1 1/2″ in 1″ | Horsepower | 5 hp |
| Flat Bar Shear Capacity | 1″ × 12″, 3/4″ × 20″, 1/2″ × 24″ |
Product Features
| Remarks | •Standard Features-Component Machines: Keyed Punch Ram for Safe and Positive Punch Alignment, Angle Shear, Bar Shear comes with blades complete with 4 cutting edges, Tool Table Work Area for Mounting Optional Tooling, Remote Foot Pedal (except 5014CM and 5014TM), Adjustable Stroke Controls, Emergency Palm Button and Lock-Out Tag-Out Accommodations, Forklift Accommodations, Manual & Parts List.All guards necessary to comply with ANSI B 11–5 Standards.One Year Warranty, Manual & Parts List Optional Tooling: Punches and Dies, Press Brakes 8″, 12″, and 24″, Channel Shear, Rod Shear, Tube Shear, Square Notcher, V-notcher, Pipe Notcher and Picket Tool,Offset Die Holder, 6″ × 6″ Die Holder, Open End Brake, Jog Control. •The most complete and versatile line of ironworkers manufactured. Tonnage ranging from 45 to 120 tons. | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
5204
