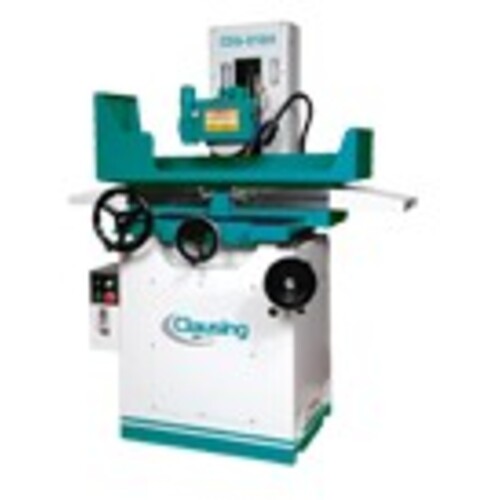

Surface Grinder - Model CSG818H; 8″ × 18″ Table Size–2 hp, 3 ph Motor
| Type | Surface Grinder | Maximum Cross Grinding Width | 9″ |
| Table Length | 18″ | Maximum Longitudinal Grinding Length | 19″ |
| Table Width | 8″ | Maximum Spindle Center to Table Dist | 18″ |
| Wheel Diameter | 8″ | Cross Auto-Transverse Increments | 9-3/4″ |
| Wheel Width | 1/2″-3/4″ | Feed Per Revolution of Handwheel | 0.2″ |
| Phase | 3 Phase | Feed Per Graduation of Handwheel | 0.0002″ |
| Spindle Speed | 3450 | Maximum RPM | 3,450 |
| Voltage | 220V | Model No | CSG818H |
| Horsepower | 2.0 hp | Weight | 2,200 lbs |
| Arbor Hole Diameter | 1 1/4″ | Magnetic Chuck Size | 8″ × 18″ |
Product Features
| Remarks | •Precision Manual Surface Grinders •8″ × 18″ manual surface grinder •High precision cartridge spindle •Anti-wear guide ways coated with "TURCITE-B" •Enlarged column and base create high stability & rigidity •Automatic lube system to lubricate lead-screws and guideways for greater longevity •Timing belt table drive which has enclosed high tensile steel cores that ensure more smooth table movement and longevity •Base tool cabinet for storage of tools, fixtures and manuals •Heavy-Duty cast iron construction | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
SHIPS BY TRUCK ADDTL COSTS APPLY
Package Weight
2200
