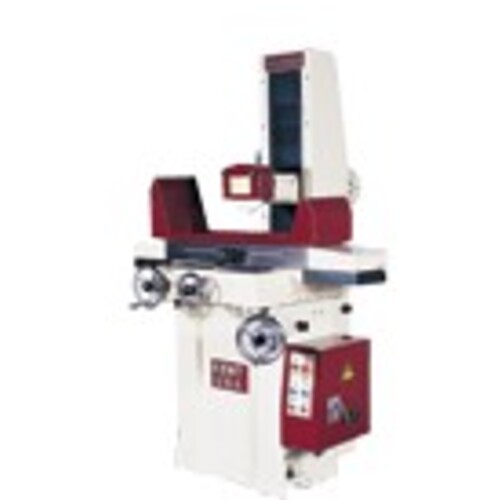

Surface Grinder - Model KGS-618; 6″ × 18″ Table Size, 2 hp Motor
| Type | Surface Grinder | Maximum Longitudinal Grinding Length | 18″ |
| Table Length | 18″ | Maximum Spindle Center to Table Dist | 19 1/2″ |
| Table Width | 6″ | Cross Auto-Transverse Increments | 6-3/4″ |
| Wheel Diameter | 8″ | Feed Per Revolution of Handwheel | 0.0010″ |
| Wheel Width | 1″ | Feed Per Graduation of Handwheel | 0.0005″ |
| Phase | 3 Phase | Vertical Down Handwheel Per Revolution | 0.0001 |
| Spindle Speed | 3470 | Maximum RPM | 3,470 |
| Voltage | 230 V/460 V | Model No | KSG618 |
| Horsepower | 2.0 hp | Weight | 2,600 lbs |
| Arbor Hole Diameter | 1-1/4″ | Magnetic Chuck Size | 6″ × 18″ |
| Maximum Cross Grinding Width | 6.0″ |
Product Features
| Remarks | •Elevated H-Frame column design •21″ spindle to table clearance under the wheel •High precision flange-mount cartridge type spindle •High accuracy ABEC–7 spindle bearings •Cable driven table with roller balls on hardened steel way •Centralized one-shot lubrication •1 Year Warranty •F.O.B. Tustin, CA. | Country of Origin | China |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
54.00000
Package Width
44.00000
Package Height
74.00000
Package Weight
2400
