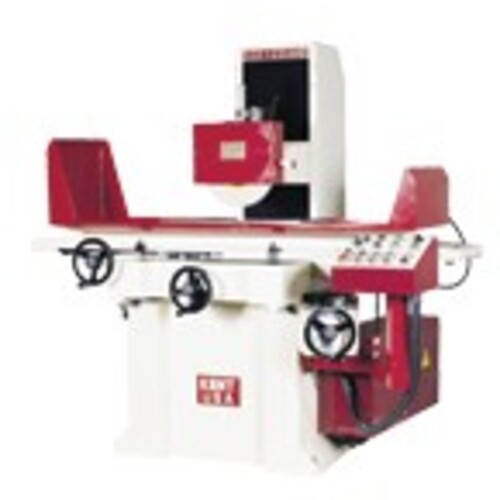

KENT 12X30 3-AXIS AUTOMATIC
| Type | Surface Grinder | Maximum Cross Grinding Width | 12.0″ |
| Table Length | 30″ | Maximum Longitudinal Grinding Length | 30″ |
| Table Width | 12″ | Maximum Spindle Center to Table Dist | 31 3/4″ |
| Wheel Diameter | 14″ | Cross Auto-Transverse Increments | 13-1/2″ |
| Wheel Width | 1-1/4″ | Feed Per Revolution of Handwheel | 0.0010″ |
| Phase | 3 Phase | Feed Per Graduation of Handwheel | 0.0005″ |
| Spindle Speed | 1750 | Maximum RPM | 1,750 |
| Voltage | 460 V | Model No | SGS1230A |
| Horsepower | 5.0 hp | Weight | 5,000 lbs |
| Arbor Hole Diameter | 5″ | Magnetic Chuck Size | 12″ × 30″ |
Product Features
| Remarks | •Elevated H-Frame column design, 21″ spindle to table clearance under the grinding wheel •Spindle has a high precision flange-mount cartridge type spindle design with ABEC–7 class bearings assure high accuracy •Cable drive mechanism combined with roller balls on hardened steel linear slideways for smooth table movements •Lubrication system centralized one shot | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
1.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
5060
