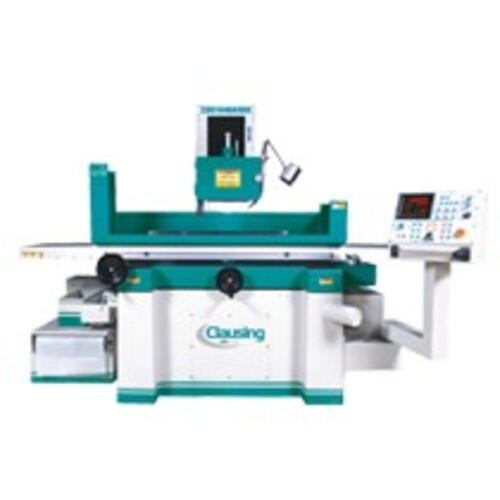

Surface Grinder - Model CSG-1228ASDII; 12″ × 48″ Table Size; 7.5 hp Motor
| Type | 3 Axis Automatic Surface Grinder | Maximum Longitudinal Grinding Length | 28″ |
| Table Length | 28″ | Maximum Spindle Center to Table Dist | 30″ |
| Table Width | 12″ | Cross Auto-Transverse Increments | 13-3/4″ |
| Wheel Diameter | 14″ | Feed Per Revolution of Handwheel | 0.0010″ |
| Wheel Width | 2″ | Feed Per Graduation of Handwheel | 0.0001″ |
| Phase | 3 Phase | Vertical Down Handwheel Per Revolution | 0.04-1.0 |
| Spindle Speed | 1750 | Maximum RPM | 1,750 |
| Voltage | 230 V/460 V | Model No | CSG-1228ASDII |
| Horsepower | 7.5 hp | Weight | 8,140 lbs |
| Arbor Hole Diameter | 3″ | Magnetic Chuck Size | 11 3/4″ × 27 1/2″ |
| Maximum Cross Grinding Width | 13.0″ |
Product Features
| Remarks | •Precision 3-Axis Automatic Surface Grinders •Vertical feed powered by dual motors, AC motor for rapid up/down and stepping motor for micro downfeed positioning, slow auto downfeed and slow up/down •Cross traverse travel powered by DC servo motor, allows step feed and continuous infeed grinding •High quality, ribbed, cast iron table, saddle and base •Automatic continuous lubrication to minimize wear on slideways & screws •High Grade Anti-Wear Slideways are hand-scraped and the table is coated with "TURCITE-B" | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
8140.0000
