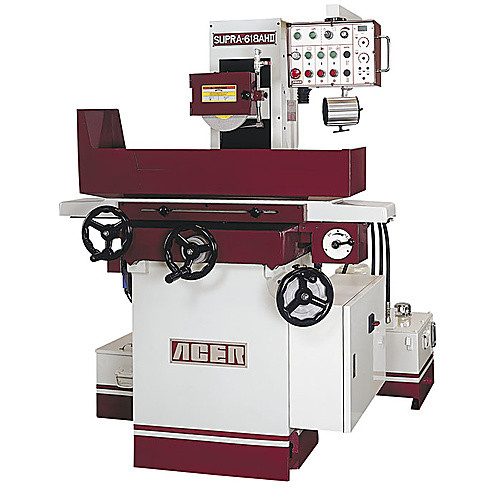

Surface Grinder - Model S618AHI–2 Axis Automatic ; 6″ × 18″ Table Size; 2 hp, 3 ph, 220/460 V Motor
| Type | 2 Axis Automatic Surface Grinder | Maximum Spindle Center to Table Dist | 20″ |
| Table Length | 18″ | Cross Auto-Transverse Increments | 6-1/8″ |
| Table Width | 6″ | Feed Per Revolution of Handwheel | 0.0005″ |
| Wheel Diameter | 8″ | Feed Per Graduation of Handwheel | 0.0001″ |
| Wheel Width | 1/2″ | Vertical Down Handwheel Per Revolution | 0.07-0.4 |
| Phase | 3 Phase | Maximum RPM | 3,450 |
| Voltage | 220 V/460 V | Included | Timing belt drive, auto lubrication, high precision cartridge-type spindle, high grade rigid cast iron base, halogen work light, diamond dresser, tool box, and complete instruction & parts manual |
| Horsepower | 2.0 hp | Model No | S618AHI |
| Arbor Hole Diameter | 1-1/4″ | Weight | 1,870 lbs |
| Maximum Cross Grinding Width | 7.0″ | Magnetic Chuck Size | 6″ × 18″ |
| Maximum Longitudinal Grinding Length | 19″ |
Product Features
| Remarks | •Supra 618AH 2-Axis Automatic Surface Grinder •Hydraulic Table and Electronic Crossfeed •Standard Equipment Includes: Timing Belt Drive, Auto Lubrication, High Precision Cartridge-Type Spindle, High Grade Rigid Cast Iron Base, Halogen Work Light, Diamond Dresser, Tool Box, and Complete Instruction & Parts Manual •Spindle runout within 0.00008″ •Meehanite castings including:saddle with double-vee turcite ways •Cog-type timing belt drive system ball-rolling table ways/"Turcite B" way (AH model) •24-Volt safety control •Push-button starter with overload protection •19–5/16″ Workpiece height | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
1870
