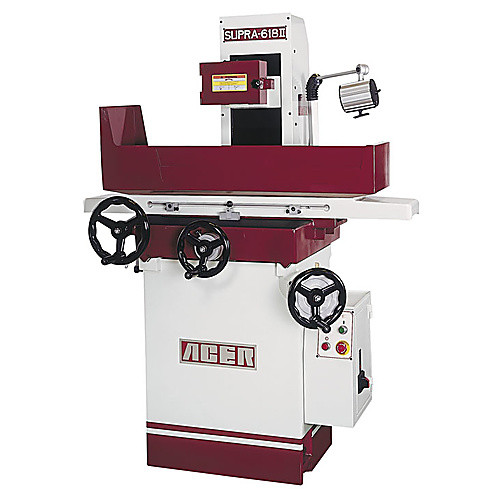

Surface Grinder - Model S618II440; 6 × 18″ Table Size; 2HP 440V; 3PH Motor
| Type | Surface Grinder | Maximum Longitudinal Grinding Length | 18″ |
| Table Length | 6″ | Maximum Spindle Center to Table Dist | 19″ |
| Table Width | 18″ | Cross Auto-Transverse Increments | 7″ |
| Wheel Diameter | 8″ | Feed Per Revolution of Handwheel | 0.0005″ |
| Wheel Width | 1/2″ | Feed Per Graduation of Handwheel | 0.0001″ |
| Phase | 3 Phase | Vertical Down Handwheel Per Revolution | 0.07-0.4 |
| Spindle Speed | 3450 | Maximum RPM | 3,450 |
| Voltage | 440 V | Model No | S618II440 |
| Horsepower | 2.0 hp | Weight | 1,700 lbs |
| Arbor Hole Diameter | 1-1/4″ | Magnetic Chuck Size | 6″ × 18″ |
| Maximum Cross Grinding Width | 7″ |
Product Features
| Remarks | •Spindle runout within 0.00008″ •Meehanite castings including: saddle with double-vee turcite ways •Cog-type timing belt drive system ball-rolling table ways/?Turcite B? way (AH model) •24-Volt safety control •Push-button starter with overload protection •19-5/16″ Workpiece height •Model S618II is a manual surface grinder with Ball Bearing Ways •Model S618AH is a 2-Axis Automatic surface grinder with Electronic crossfeed and hydraulic table •1†Year Warranty •F.O.B. ORANGE, CAStandard Equipment:•Auto Lubrication,†Halogen Work Light, Diamond Dresser, Tool Box, and Complete Instruction & Parts Manual | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
44.00000
Package Width
44.00000
Package Height
84.00000
Package Weight
1700
