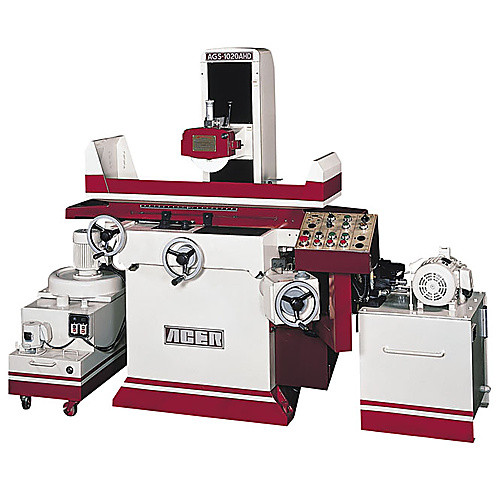

Surface Grinder - Model AGS1020AHD4; 10 × 20″ Table Size; 2HP; 440V; 3PH Motor

| Type | Surface Grinder | Maximum Cross Grinding Width | 10″ |
| Table Length | 10″ | Maximum Longitudinal Grinding Length | 20″ |
| Table Width | 20″ | Maximum Spindle Center to Table Dist | 20 1/2″ |
| Wheel Diameter | 8″ | Cross Auto-Transverse Increments | 11″ |
| Wheel Width | 1/2″ | Feed Per Revolution of Handwheel | 0.001″ |
| Phase | 3 Phase | Feed Per Graduation of Handwheel | 0.0005″ |
| Spindle Speed | 3450 | Maximum RPM | 3,580 |
| Voltage | 440 V | Model No | AGS1020AHD440 |
| Horsepower | 2.0 hp | Weight | 3,510 lbs |
| Arbor Hole Diameter | 1-1/4″ | Magnetic Chuck Size | 10″ × 20″ |
Product Features
| Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
80.00000
Package Width
68.00000
Package Height
77.00000
Package Weight
3510
