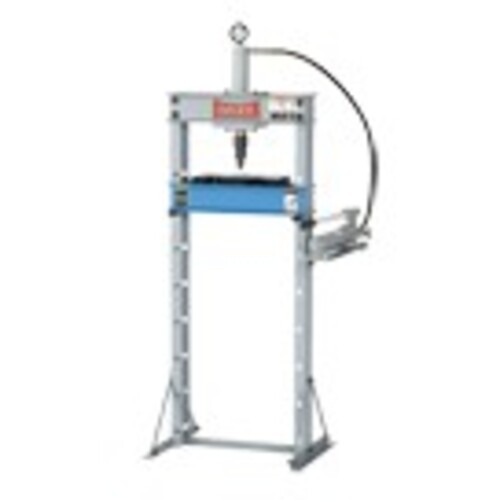

Hand Operated Hydraulic Press - Model F-10–10 Ton Capacity

| Type | Hydraulic Shop Press - Hand Operated | Maximum Ram To Table | 38″ |
| Pressure (Ton) | 10 ton | Ram Travel | 6″ |
| Type of Power | Hydraulic | Width Between Uprights | 16-3/4″ |
| Base Width | 24″ | Width Between Table Channels | 3″ |
| Base Depth | 28″ | Model No | F-10 |
| Height | 60″ | Weight | 225 lbs |
| Minimum Ram To Table | 4″ |
Product Features
| Remarks | •Capacity (tons) 10 Ram Travel 6 Horizontal Workhead Travel N/A Screw Travel N/A Minimum Ram to Table 0–4 Maximum Ram to Table 38 Width Between Uprights 16–3/4 Base 24 × 28 Height 60 Weight 167
•Furnished with a flat ram nose for pressing and a step reduced ram nose for bushing work
•Hydraulic pressing cylinder can be located right or left
•Adjustable table
•Table plates and v-blocks are also furnished for many other pressuring applications | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
23.00000
Package Width
52.00000
Package Height
8.00000
Package Weight
167
