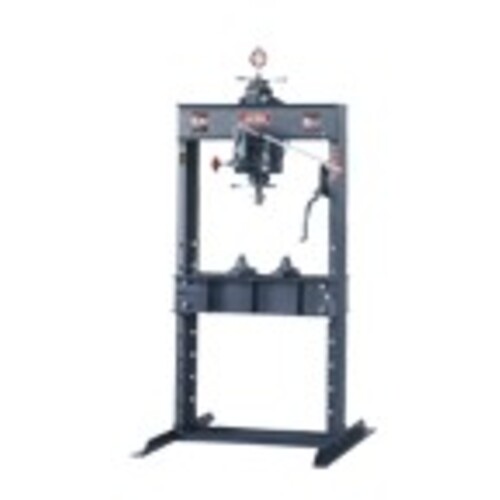

| Type | Hydraulic Shop Press - Hand Operated | Maximum Ram To Table | 36″ |
| Pressure (Ton) | 75 ton | Ram Travel | 4 1/2″ |
| Type of Power | Hydraulic | Width Between Uprights | 44″ |
| Base Width | 36″ | Width Between Table Channels | 8-1/4″ |
| Base Depth | 55″ | Model No | 75H |
| Height | 87″ | Maximum Work Height | 36″ |
| Minimum Ram To Table | 6″ | Weight | 1,245 lbs |
Product Features
| Remarks | •Capacity Tons 75 Height (in.) 87 Floor Space (in.) 36 × 55 Table Travel (in.) 30 Ram Travel (in.) 4–1/2 Screw Travel (in.) 7 Max. Work Width (in.) 44 Max. Work Height (in.) 36 Max. Work Arbor (in.) 8–1/4 Shipping Weight (lbs.) 1245 •Hand operation for economical performance. •Rapid screw traverse of ram permits quick, easy movement of the ram by means of aconvenient handwheel. •Adjustable tablewith self-locking hoist. •Movable workhead is roller mounted (except Model No. 25H). | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
93.00000
Package Width
26.00000
Package Height
54.00000
Package Weight
1245
