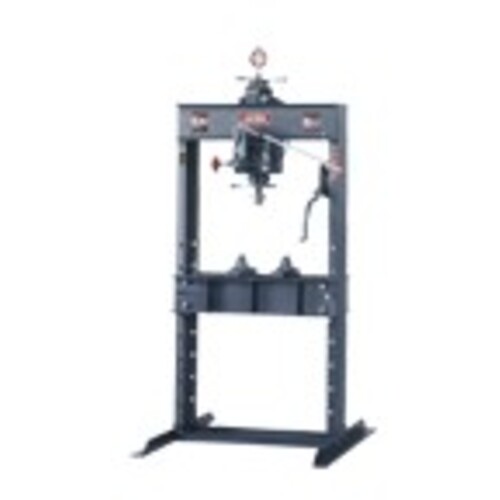

| Type | Hydraulic Shop Press - Hand Operated | Maximum Ram To Table | 40″ |
| Pressure (Ton) | 50 ton | Ram Travel | 4″ |
| Type of Power | Hydraulic | Width Between Uprights | 32-3/4″ |
| Base Width | 36″ | Width Between Table Channels | 7-1/4″ |
| Base Depth | 43-1/2″ | Model No | 50H |
| Height | 85″ | Maximum Work Height | 40″ |
| Minimum Ram To Table | 5″ | Weight | 810 lbs |
Product Features
| Remarks | •Capacity Tons 50 Height (in.) 85 Floor Space (in.) 36 × 43–1/2 Table Travel (in.) 35 Ram Travel (in.) 4 Screw Travel (in.) 7 Max. Work Width (in.) 32–3/4 Max. Work Height (in.) 40 Max. Work Arbor (in.) 7–1/4 Shipping Weight (lbs.) 810
•Hand operation for economical performance.
•Rapid screw traverse of ram permits quick, easy movement of the ram by means of aconvenient handwheel.
•Adjustable tablewith self-locking hoist.
•Movable workhead is roller mounted (except Model No. 25H). | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
92.00000
Package Width
26.00000
Package Height
43.00000
Package Weight
810
