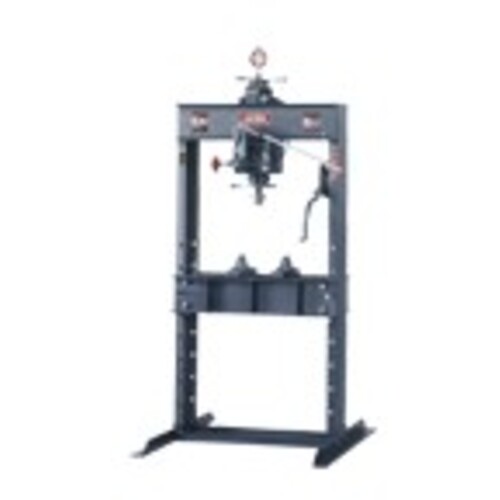

| Type | Hydraulic Shop Press - Hand Operated | Maximum Ram To Table | 39″ |
| Pressure (Ton) | 25 ton | Ram Travel | 5″ |
| Type of Power | Hydraulic | Width Between Uprights | 33-1/2″ |
| Base Width | 30″ | Width Between Table Channels | 5-3/16″ |
| Base Depth | 42-1/2″ | Model No | 25H |
| Height | 76″ | Maximum Work Height | 39″ |
| Minimum Ram To Table | 4″ | Weight | 450 lbs |
Product Features
| Remarks | •Capacity Tons 25 Height (in.) 76 Floor Space (in.) 30 × 42–1/2 Table Travel (in.) 35 Ram Travel (in.) 5 Screw Travel (in.) 5 Max. Work Width (in.) 33–1/2 Max. Work Height (in.) 39 Max. Work Arbor (in.) 5–3/16 Shipping Weight (lbs.) 450 •Hand operation for economical performance. •Rapid screw traverse of ram permits quick, easy movement of the ram by means of aconvenient handwheel. •Adjustable tablewith self-locking hoist. •Movable workhead is roller mounted (except Model No. 25H). | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
92.00000
Package Width
26.00000
Package Height
43.00000
Package Weight
450
