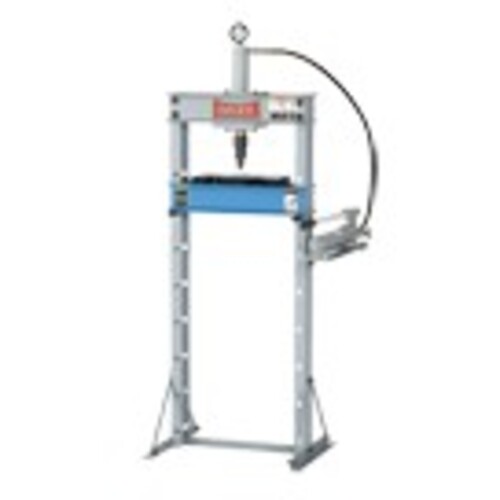

Hand Operated Hydraulic Press - Model B-10–10 Ton Capacity
| Type | Hydraulic Shop Press - Hand Operated | Maximum Ram To Table | 16″ |
| Pressure (Ton) | 10 ton | Ram Travel | 6″ |
| Type of Power | Hydraulic | Width Between Uprights | 16-3/4″ |
| Base Width | 23″ | Width Between Table Channels | 3″ |
| Base Depth | 18″ | Model No | B-10 |
| Height | 36″ | Weight | 165 lbs |
| Minimum Ram To Table | 4″ |
Product Features
| Remarks | •Capacity (tons) 10 Ram Travel 6 Horizontal Workhead Travel N/A Screw Travel N/A Minimum Ram to Table 4 Maximum Ram to Table 16 Width Between Uprights 16–3/4 Base 23 × 18 Height 36 Weight 132 •Furnished with a flat ram nose for pressing and a step reduced ram nose for bushing work •Hydraulic pressing cylinder can be located right or left •Adjustable table •Table plates and v-blocks are also furnished for many other pressuring applications | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
19.00000
Package Width
30.00000
Package Height
6.00000
Package Weight
137
