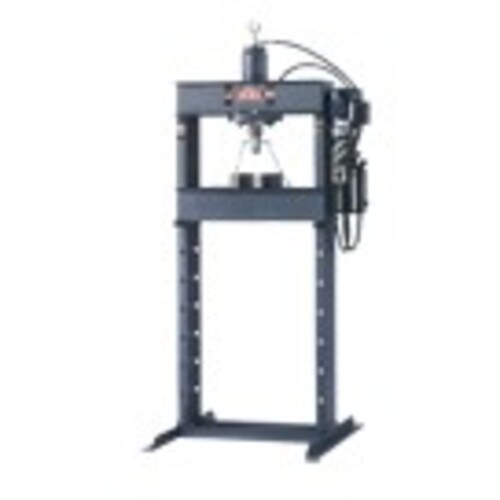

Electrically Operated Hydraulic Press - Model Force 50DA-50 Ton Capacity
| Type | Hydraulic Shop Press - Electric | Maximum Ram To Table | 41-3/4″ |
| Pressure (Ton) | 50 ton | Ram Travel | 16″ |
| Type of Power | Electric|Hydraulic | Phase | 1 PH |
| Stroke | 110 V/220 V | Ram Speed | 11 IPM |
| Base Width | 55″ | Width Between Uprights | 44″ |
| Base Depth | 36″ | Width Between Table Channels | 8-1/4″ |
| Height | 94″ | Model No | Force 50DA |
| Horsepower | 2 HP | Weight | 1,330 lbs |
| Minimum Ram To Table | 10″ |
Product Features
| Remarks | •For all your pressing jobs straightening, bending, broaching, crimping, shaping, forming, and more the Dake Dura® Press provides the performance you can count on with the durability that will last from job to job. •Capacity (tons) 50 Voltage 110/220V Horse Power 1 Ram Speed (ipm) 11 Ram Travel 16 Minimum Ram to Table 12 Maximum Ram to Table 42 Width Between Uprights 44 Base 55 × 36 Height 94 Weight 1245 •One hand ram positioning with throttling hydraulic valve control •Force 40, 70, and 100 have rapid ram advance-speed shifts automatically when contact is made •40 and 70 ton models have two submersible centrifugal pumps, 100 ton model has three pumps •All electrical controls are low voltage | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
32.00000
Package Width
55.00000
Package Height
80.00000
Package Weight
1245
