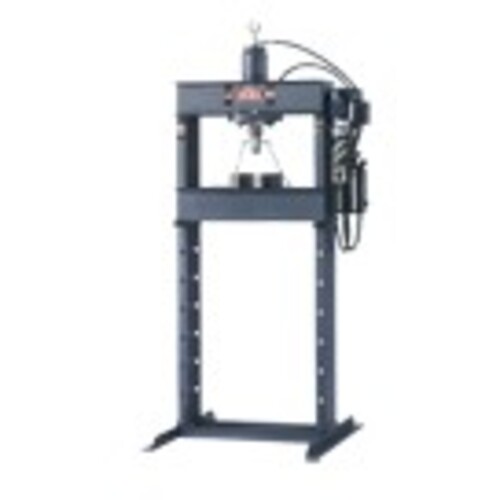

Electrically Operated Hydraulic Press - Model Force 25DA-25 Ton Capacity
| Type | Hydraulic Shop Press - Electric | Maximum Ram To Table | 44″ |
| Pressure (Ton) | 25 ton | Ram Travel | 10″ |
| Type of Power | Electric|Hydraulic | Phase | 1 PH |
| Stroke | 110 V | Ram Speed | 10 IPM |
| Base Width | 24″ | Width Between Uprights | 28″ |
| Base Depth | 38″ | Width Between Table Channels | 7″ |
| Height | 88″ | Model No | Force 25DA |
| Horsepower | 1 HP | Weight | 570 lbs |
| Minimum Ram To Table | 8″ |
Product Features
| Remarks | •For all your pressing jobs straightening, bending, broaching, crimping, shaping, forming, and more the Dake Dura® Press provides the performance you can count on with the durability that will last from job to job. •Capacity (tons) 25 Voltage 110V Horse Power 1 Ram Speed (ipm) 10 Ram Travel 10 Minimum Ram to Table 8 Maximum Ram to Table 44 Width Between Uprights 28 Base 30 × 24 Height 88 Weight 550 •One hand ram positioning with throttling hydraulic valve control •Force 40, 70, and 100 have rapid ram advance-speed shifts automatically when contact is made •40 and 70 ton models have two submersible centrifugal pumps, 100 ton model has three pumps •All electrical controls are low voltage | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
550
