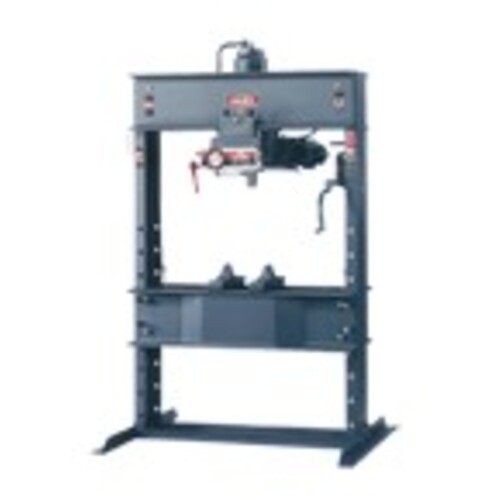

Electrically Operated Hydraulic Press - Model 5-075-75 Ton Capacity

| Type | Hydraulic Shop Press - Electric | Number of Speeds | Variable |
| Pressure (Ton) | 75 ton | Ram Travel | 10″ |
| Type of Power | Electric|Hydraulic | Phase | 3 PH |
| Stroke | 230 V/460 V | Ram Speed | 5 IPM |
| Base Width | 36″ | Width Between Uprights | 44″ |
| Base Depth | 55-1/2″ | Width Between Table Channels | 8-1/4″ |
| Height | 87″ | Model No | 5-075 |
| Horsepower | 2 HP | Maximum Work Height | 36″ |
| Minimum Ram To Table | 6″ | Weight | 1,650 lbs |
| Maximum Ram To Table | 36″ |
Product Features
| Remarks | •Elec-Draulic Hydraulic Presses
•Capacity Tons 75 Height (in.) 87 Floor Space (in.) 36 × 55–1/2 Table Travel (in.) 30 Ram Travel (in.) 10 Ram Speed (in./min.) Advance 28 Pressing 5 Max. Work Width (in.) 44 Max. Work Height (in.) 36 Max. Work Arbor (in.) 8–1/4 Shipping Weight (lbs.) 1650
•Electric operation eliminates the need for hand pumping.
•Rapid ram approach quickly moves the ram to work to save production time.
•Variable ram speed allows precise control of ram travel and pressure.
•Stroke indicator ensures accurate ram control.
•Adjustable table with self-locking hoist.
•Movable workhead is roller mounted. | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
1650
