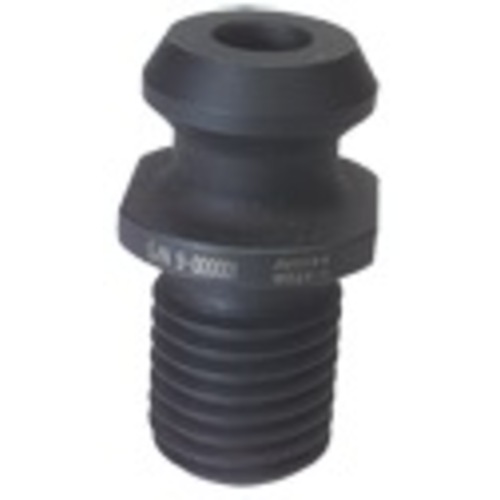

Retention Knobs - Style C; M24 × 3.0; 60°; BT50 Tool Shank
| Type | Retention Knob | Hole | 0.312″ |
| Spindle Taper | BT50 | Dimension L1 | 1.384″ |
| Style | C | Dimension L2 | 1.778″ |
| TPI | M24 × 3.00 mm | Knob Diameter | 0.903″ |
| Angle | 60° |
Product Features
| Remarks | •Retention knobs are now being marked with serial numbers for your convenience in tracking •In this way you can record the serial number of the retention knob, the date, and the type of inspection performed •Safety Notice Retention knobs are not intended to last forever •You should develop a safety program that includes regular inspection of all tooling, especially your retention knobs •All tooling and retention knobs should be checked for proper fit every time the tool in the holder is changed. | Country of Origin | USA |
Shipping Info
Package Length
4.24000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.58
