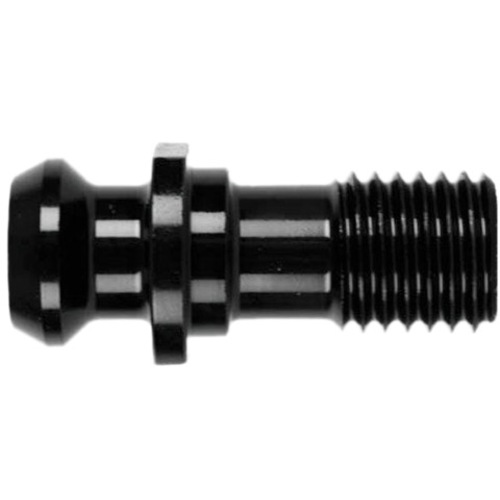

Style A 5/8-11 Retention Knob 45 Deg CAT40
| Type | Retention Knob | Hole | .2360″ |
| Compatible With | Milling Machines | Dimension L1 | .4400″ |
| Spindle Taper | CAT40 | Dimension L2 | .6400″ |
| Style | A | Knob Diameter | .7400″ |
| TPI | 5/8″-11 | Shoulder | .9440″ |
| Angle | 45 | Flange | .1200″ |
Product Features
| Remarks | •High Torque (HT) and High Torque High Strength (HTHS0 retention knobs will increase production 10 to 40%, reduce set-up times, reduce polishing times, increase spindle life, improve finishes and increase tool life•HT knobs are manufactured from AISI 8620H material•HS and HTSHS knobs are made from AISI 9310H•HT and HTHS knobs will fit any toolholder made to industry standards•HT and HTHS retentionknbos should be installed according to the manufacturer's torque chart provided with each knob using a retention knob socket and torque wrench•Marked with serieal numbers | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
1.60000
Package Height
1.60000
Package Weight
0.14
