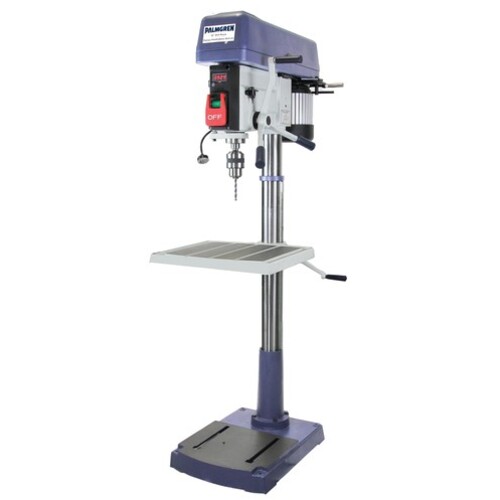

20″ HD Floor Model Drill Press; Step Pulley; 16 Speeds; 1.5HP 115/230V Motor
| Swing Distance | 20″ | Quill Diameter | 2 7/16″ |
| Spindle Speed Control | Step Pulley | Drilling Capacity | 1 1/4″ |
| Number of Spindle Speeds | 16 | Drilling Capacity in Cast Iron | 1 1/4″ |
| Horsepower | 1 1/2 hp | Warranty | 3 Years |
| Phase | 1 Phase | Minimum Spindle Speed | 120 RPM |
| Spindle Taper | MT3 | Maximum Spindle Speed | 3,605 RPM |
| Voltage | 120 V/240 V | Model No | 80207 |
| Stand Type | Floor | Table Width | 16 5/8″ |
| Spindle Travel | 6″ | Table Length | 18 5/8″ |
| Maximum Chuck Capacity | n/a | Column Diameter | 3 5/8″ |
| Weight | 352 lbs |
Product Features
| Country of Origin | CHINA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
27.00000
Package Width
29.00000
Package Height
13.00000
Package Weight
380
