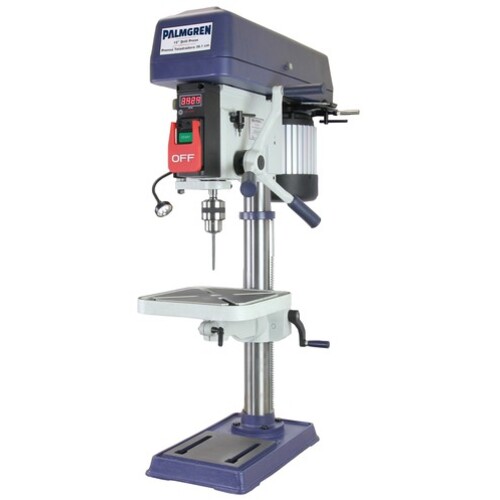

Bench Model Drill Press - 15″ HD , Step Pulley, 16 Speed, 1/2 HP 120V/240V Motor, 185 lbs
| Swing Distance | 15″ | Minimum Spindle Speed | 138 RPM |
| Horsepower | 1/2 hp | Maximum Spindle Speed | 3,476 RPM |
| Voltage | 120 V | Weight | 185 lbs |
| Chuck Size | 5/8″ | Spindle Travel | 5″ |
| Spindle Speed Control | Step Pulley | Spindle Taper | MT2 |
| Number of Spindle Speeds | 16 | Column Diameter | 2 9/16″ |
| Phase | 1 Phase | Height | 43″ |
| Table Size | 11 1/2″ × 13″ | Quill Travel | 5″ |
| Table Length | 13″ | Quill Diameter | 2.047″ |
| Table Width | 11 1/2″ | Drilling Capacity | 5/8″ |
| Stand Type | Bench | Warranty | 2 years |
| Capacity Cast Iron | 5/8″ | Model No | 80155 |
| Capacity Mild Steel | 1/2″ | Spindle Distance to Table | 13″ |
Product Features
| Remarks | •Palmgren's heavy duty 16-speed drill presses are designed and built for drilling a wide array of materials. They have weight and rigidity to maintain the built-in tight tolerances required for metalworking applications. •Fully enclosed spindle for accurate drilling operations •Max.spindle run out of .0005″ •Extended quill travel for deep hole drilling •LED readout of spindle speed and quill travel •Rack and pinion table raiser •Precision ground t-slotted work table with coolant trough •Table tilts 45° right/left and rotates 360° around the column •Quick changeVertical depth stop •Heavy cast metal 3 spoke quill feed handle with ergonomic speed feed handle •Frount mounted paddle type power switch •Includes chuck with safety-eject key and arbor •Two Year Warranty •F.O.B. Warren, MI | Country of Origin | CHINA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
33.00000
Package Width
34.00000
Package Height
15.00000
Package Weight
185
