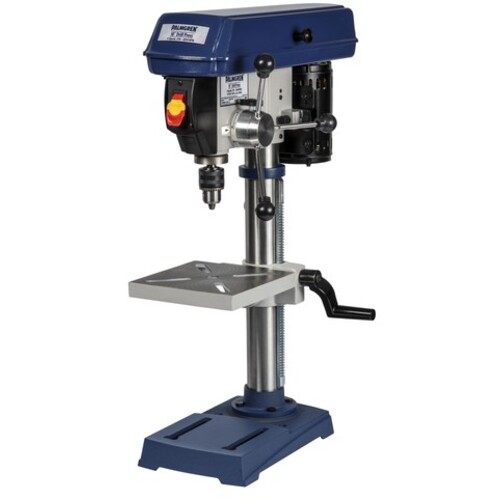

Bench Model Drill Press - 10″, 5 Speeds, 1/3 HP 115V Motor, Step Pulley Drill Press, 70 lbs
| Swing Distance | 10″ | Minimum Spindle Speed | 620 RPM |
| Horsepower | 1/3 hp | Maximum Spindle Speed | 3,100 RPM |
| Voltage | 115 V | Weight | 70 lbs |
| Chuck Size | 1/2″ | Spindle Travel | 2 1/2″ |
| Spindle Speed Control | Step Pulley | Spindle Taper | JT33 |
| Number of Spindle Speeds | 5 | Column Diameter | 1 9/16″ |
| Phase | 1 Phase | Height | 27 1/2″ |
| Table Size | 7 13/16″ × 7 13/16″ | Quill Travel | 2 1/2″ |
| Table Length | 7 13/16″ | Drilling Capacity | 1/2″ |
| Table Width | 7 13/16″ | Warranty | 2 years |
| Stand Type | Bench | Model No | 80110A |
| Capacity Cast Iron | 1/2″ | Spindle Distance to Table | 10 11/16″ |
| Capacity Mild Steel | 1/2″ |
Product Features
| Remarks | •Heavy cast iron drill head, base and table •The work table height is adjustable using rack and pinion •The table can be tilted 45° to the right or left and rotates 360° around the column •Precision ground slotted work table and base for secure, accurate mounting of fixturing and work pieces •Other features include enclosed ball bearing quill assembly, quick belt tensioning mechanism and front mounted safety paddle switch | Country of Origin | China |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Length
16.00000
Package Width
22.00000
Package Height
10.00000
Package Weight
51
