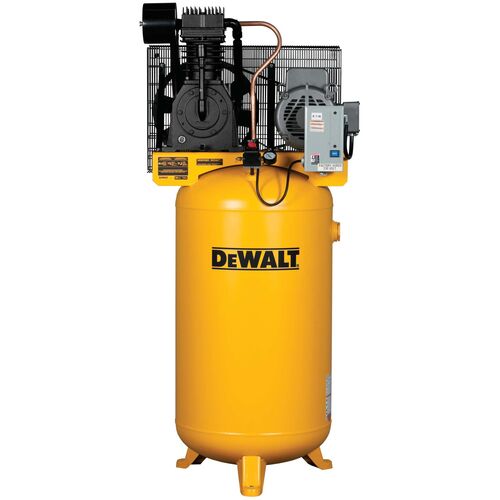

80 Gal. Two Stage Cast Iron Air Compressor, 7.5HP
| Type | Two Stage | Maximum Air Pressure | 175 psi |
| Phase | 1 Phase | Material | Cast Iron |
| Horsepower | 7.5 hp | Weight | 623 lbs |
| Voltage | 230 V | Tank Type | Vertical |
| Tank Capacity | 80.0 gallon | Start-Up Oil Kit | Maintenance Kit Available |
| Air Consumption | 22.1 scfm @ 100 psi 21.2 scfm @ 175 psi | Model No | DXCMV7518075 |
Product Features
| Remarks | •Patented pump design •Industrial performance delivers maximum CFM @ 175 •Baldor industrial class electric motor •Four pole, 1725 RPM, UL certified, NEMA rated •Uniquely designed metal belt guard improves compressor pump cooling by as much as 60∞F over other belt guard designs •Large capacity, 80 gallon ASME certified tank | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
623
