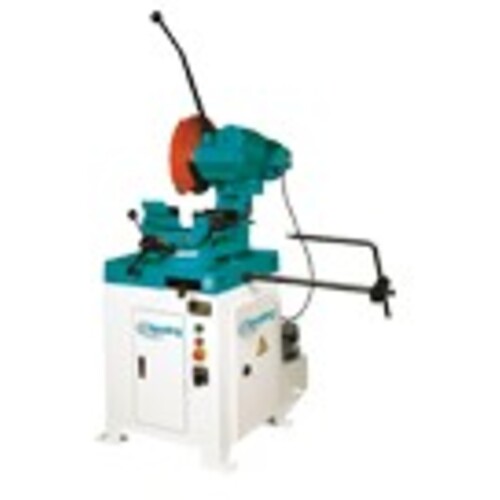

High Production Cold Saw - Model FHC315D; 12-1/2″ Blade Size; 1.5/3HP, 3PH, 230V Motor
| Material Compatibility | Ferrous | Weight | 700 lbs |
| Blade Diameter | 12 1/2″ | Solid Round Capacity | 2 1/8″ |
| Round Tube Capacity | 4 1/4″ | Square Tube Capacity | 3 3/4″ |
| Horsepower | 1 1/2 - 3 hp | Solid Square Capacity | 2 1/8″ |
| Blade Speeds | 35 RPM , 75 RPM | Model No | FHC315D |
| Voltage | 230 V | Phase | 3 Phase |
| Cutting Angle | 0-45° Left or Right | Blade Size | 12 1/2″ |
Product Features
| Remarks | •High-Production Cold Saws 35/70 RPM, 12–1 2″ Manual Ferrous Saw •A Line of Manual, Pneumatic Vise and Semi-Automatic Ferrous Cutting Cold Saws •Features: 230/460/60/3 Electricals Totally Enclosed Fan-Cooled Motor Enclosed Worm Gear Drive Two Speeds for Versatility Self-Centering Vise with Angle Scale Head Rotates 45° left and right Flood Coolant System Adjustable Stock Stop One Circular Saw Blade Two (2) Year Limited Warranty Automatic Cutting Cycle (FHC350SA) Automatic feed rate (FHC350SA) •Capacity Specifications Model FHC315D 90° Round Tube 4–1/4″ 90° Square Tube 3–1/2″ 90° Round Solid 2–1/8″ 90° Square Solid 2–1/8″ 45° Round Tube 3–3/4″ 45° Square Tube 3–1/8″ 45° Round Solid 2″ 45° Square Solid 2″ Drive Motor 1.5/2 HP Shipping Wt. (lbs.) 700 •F.O.B. Kalamazoo, MI | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
700
