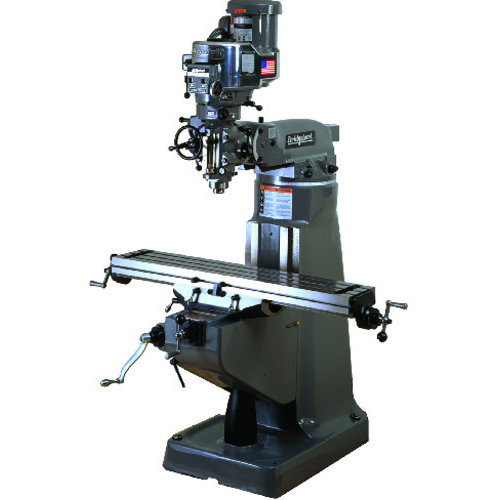

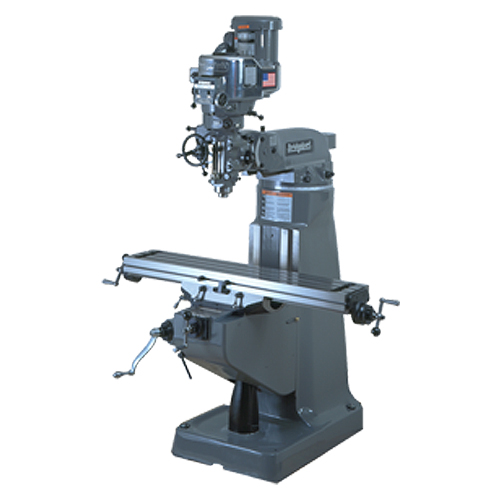

9X49 BRIDGEPORT
| Type | Vertical Mill | Voltage | 208-230 V/460 V |
| Table Width | 9″ | Phase | 3 Phase |
| Table Length | 49″ | Maximum Weight of Workpiece | 750 lbs |
| Y-Axis Saddle Travel | 12″ | Weight | 1,950 lbs |
| X-Axis Table Travel | 37 1/2″ | Quill Diameter | 3 3/8″ |
| Spindle Taper | R8 | Quill Travel | 5″ |
| Spindle Speeds | 60-4,300 RPM | T-Slot Size | 5/8″ |
| Z-Axis Knee Travel | 16″ | Model No | C3061101C |
| Horsepower | 3 hp |
Product Features
| Remarks | •The Bridgeport Series I Standard Mill is the original milling, drilling and boring machine •The Bridgeport Series I Knee Mill is the most popular mill ever made with over 370,000 machines built over the past 70-plus years. | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
60.00000
Package Width
60.00000
Package Height
72.00000
Package Weight
1950
