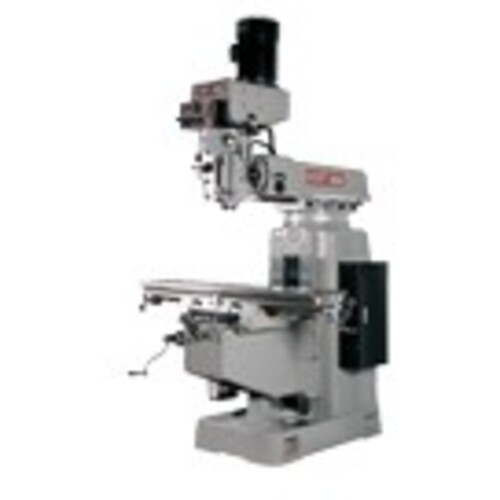

Vertical Mills - 12″ × 50″ Table Size, 5 HP Motor, NMTB–40 Spindle
| Type | Vertical Mill | Voltage | 460 V |
| Table Width | 12″ | Phase | 3 Phase |
| Table Length | 50″ | Maximum Weight of Workpiece | 850 lbs |
| Y-Axis Saddle Travel | 16″ | Weight | 3,800 lbs |
| X-Axis Table Travel | 33″ | Quill Diameter | 4.173″ |
| Spindle Taper | NMTB40 | Quill Travel | 5 1/2″ |
| Spindle Speeds | 60-4,500 RPM | T-Slot Size | 5/8″ |
| Z-Axis Knee Travel | 15 1/2″ | Model No | KTM5VKF |
| Horsepower | 5 hp |
Product Features
| Remarks | •AC frequency inverter drive (60–4500 RPM) •R–8 Spindle with precision class 7 bearings •Quick set quill stop speeds set up times •Digital RPM display and load meter •Precision ground leadscrews wit | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
38000.0000
