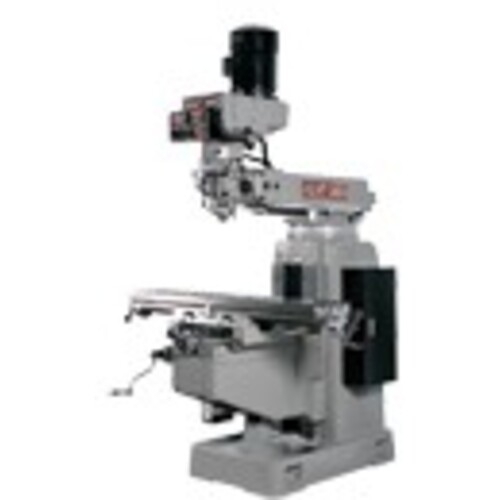

Vertical Mills - 10″ × 50″ Table Size, 3 HP Motor, R–8 Spindle
| Type | Vertical Mill | Voltage | 230 V |
| Table Width | 10″ | Phase | 1 Phase / 3 Phase |
| Table Length | 50″ | Maximum Weight of Workpiece | 850 lbs |
| Y-Axis Saddle Travel | 15 1/4″ | Weight | 3,200 lbs |
| X-Axis Table Travel | 36″ | Quill Diameter | 3 3/8″ |
| Spindle Taper | R8 | Quill Travel | 5″ |
| Spindle Speeds | 60-4,500 RPM | T-Slot Size | 5/8″ |
| Z-Axis Knee Travel | 15″ | Model No | KTM3VKF |
| Horsepower | 3 hp |
Product Features
| Remarks | •AC frequency inverter drive (60–4500 RPM) •R–8 Spindle with precision class 7 bearings •Quick set quill stop speeds set up times •Digital RPM display and load meter •Precision ground leadscrews wit | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
1.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
3100
