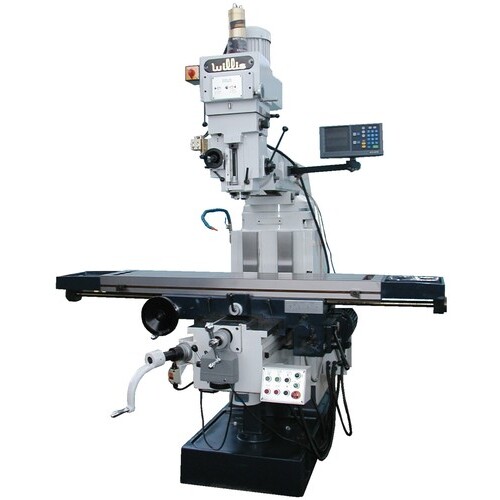

5000VS Mill–59″ × 12″ Table, 47 X-Axis Travel, 15″ Y-Axis travel, 20″ Knee Travel, 5 HP variable speed 60–3600 RPM, 40 taper spindle
| Type | Vertical Knee Mill | Voltage | 230 V |
| Table Width | 11″ | Phase | 3 Phase |
| Table Length | 59″ | Maximum Weight of Workpiece | 1,650 lbs |
| Y-Axis Saddle Travel | 15″ | Weight | 4,950 lbs |
| X-Axis Table Travel | 47″ | Quill Diameter | 4 1/8″ |
| Spindle Taper | NST40 | Quill Travel | 5″ |
| Spindle Speeds | 60-3,600 RPM | T-Slot Size | 5/8″ |
| Z-Axis Knee Travel | 20″ | Model No | 5000VS |
| Horsepower | 5 hp |
Product Features
| Remarks | •5 HP variable speed 60–3600 RPM, NST 40 taper spindle •Hardened & ground table surface •Built-in tool trays on both ends of table •Vertical table raising by 2 HP motor with safety limit switch •Chr | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
4950
