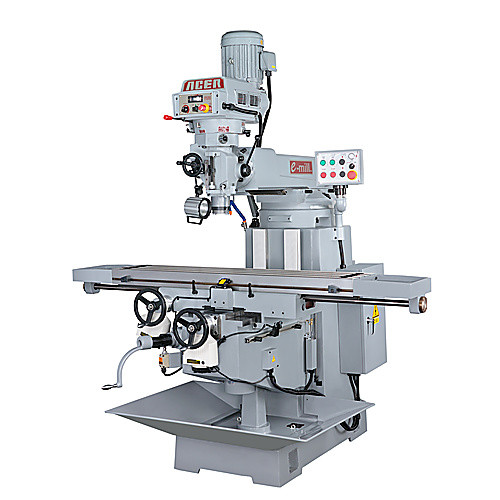

ACER 6VK EVS MILLING MACHINE

| Type | Electronic Variable Speed Vertical Mill | Voltage | 440 V |
| Table Width | 12″ | Phase | 3 Phase |
| Table Length | 60″ | Maximum Weight of Workpiece | 850 lbs |
| Y-Axis Saddle Travel | 15″ | Weight | 4,960 lbs |
| X-Axis Table Travel | 47 1/4″ | Quill Diameter | 4″ |
| Spindle Taper | 40T | Quill Travel | 6″ |
| Spindle Speeds | 50-3,750 RPM | T-Slot Size | 5/8″ |
| Z-Axis Knee Travel | 19 3/4″ | Model No | 6VK440 |
| Horsepower | 5 hp |
Product Features
| Remarks | •5 HP Spindle Inverter Motor
•Inverter Control Variable Speeds: Toshiba
•Precision Grinding Head Housing; Electric Brake
•Precision Spindle with ABEC–7 Bearing
•Chrome Plated & Precision Ground Spin | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
36.00000
Package Width
48.00000
Package Height
60.00000
Package Weight
4960
