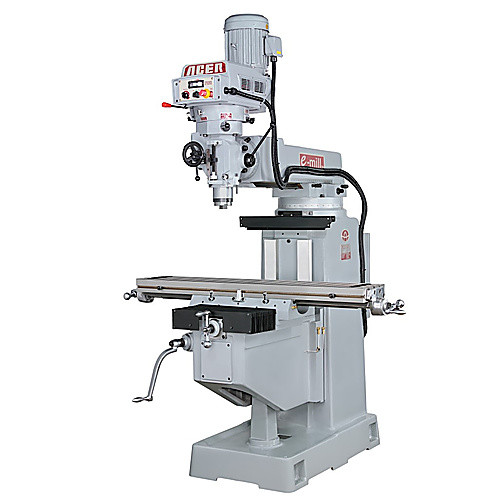

Electronic Variable speed Vertical Mill - CAT40 Spindle–10″ × 50″ Table Size–5HP, 3PH, 220V Motor
| Type | Electronic Variable Speed Vertical Mill | Voltage | 220 V |
| Table Width | 10″ | Phase | 1 Phase / 3 Phase |
| Table Length | 50″ | Maximum Weight of Workpiece | 850 lbs |
| Y-Axis Saddle Travel | 16″ | Weight | 3,500 lbs |
| X-Axis Table Travel | 32 1/2″ | Quill Diameter | 4″ |
| Spindle Taper | CAT40 | Quill Travel | 5″ |
| Spindle Speeds | 50-3,750 RPM | T-Slot Size | 5/8″ |
| Z-Axis Knee Travel | 19″ | Model No | 5VKHEVS |
| Horsepower | 5 hp |
Product Features
| Remarks | •(EVS) Electronic Variable Speed Vertical Milling Machine •Vector Type A/C Inverter •The Model 5VKH has box or square ways designed more for the retrofit CNC market. •The 5VK has the 5HP motor for those who re | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
3300.0000
