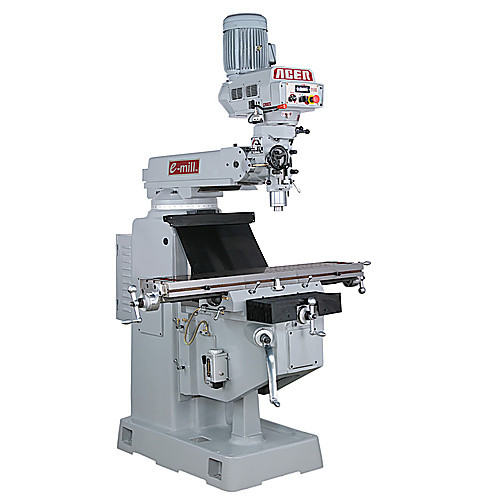

Electronic Variable speed Vertical Mill - R8 Spindle–10″ × 50″ Table Size -Box Way, 3HP, 3PH, 220V Motor
| Type | Electronic Variable Speed Vertical Mill | Voltage | 220 V |
| Table Width | 10″ | Phase | 1 Phase / 3 Phase |
| Table Length | 50″ | Maximum Weight of Workpiece | 850 lbs |
| Y-Axis Saddle Travel | 16″ | Weight | 3,300 lbs |
| X-Axis Table Travel | 32 1/2″ | Quill Diameter | 3 3/8″ |
| Spindle Taper | R8 | Quill Travel | 5″ |
| Spindle Speeds | 60-4,500 RPM | T-Slot Size | 5/8″ |
| Z-Axis Knee Travel | 16″ | Model No | 3VKHEVS |
| Horsepower | 3 hp |
Product Features
| Remarks | •(EVS) Electronic Variable Speed Vertical Milling Machine •Vector Type A/C Inverter •The 3VK Model has dovetail ways on the column and knee. •The Model 3VKH and the 5VKH has box or square ways designed more for | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
3050.0000
