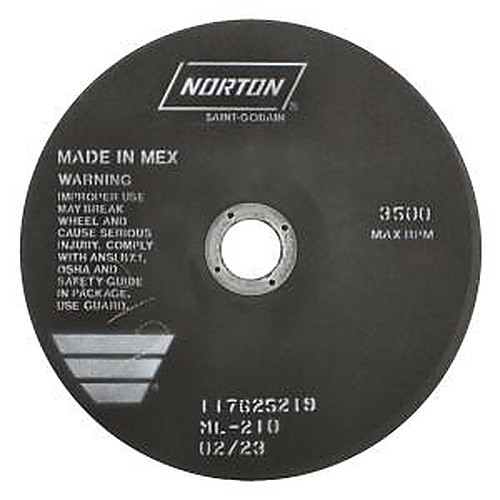

10X.063 METALLURGICAL 100
| Diameter | 254 mm | Bond Type | Resin |
| Thickness | 1.6 mm | Hardness | K |
| Arbor Hole | 32 mm | Specification | 8L10A |
| Reinforced | Non-Reinforced | Trade Name | MetLab |
| Grit | 100 | For Use With | Hard Steels (Rc 40-55) |
| Wheel Type | Type 41 | Type | Metallurgical Cut-Off Wheel |
| Abrasive Material | Aluminum Oxide | Hole Size | 32 mm |
| Maximum RPM | 3,500 |
Product Features
| Remarks | •Developed specifically for microscopic metal analysis for Burr-free cutting •Designed to work on Buehler, LECO and Struers machinery •Superior bond system for generating pure cuts while minimizing wheel wear and odor •Used wet for minimal burn •Non-reinforced cut-off wheels are used only on fixed based machines where the work is securely clamped and the wheel adequately guarded, and the design of the machine such that the wheel operates in a controlled cutting plane •The Norton non-reinforced metallurgical line of Type 01 straight cut-off wheels was developed specifically for sectioning of metal samples; burr-free cutting, minimal burn and distortion. | Country of Origin | Mexico |
Shipping Info
Package Weight
0.35
