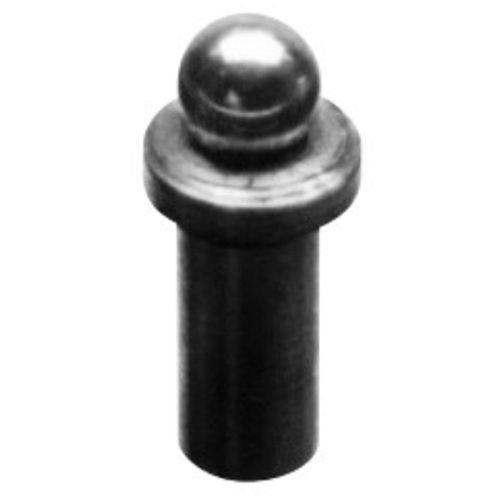

Tooling Ball Carbide

| Type | Tooling Ball | Ball Diameter | 0.1250″ |
| Material | Carbide | Shank Diameter | 0.1900″ |
| Model No | 29099 | Shoulder Diameter | 0.1255″ |
| Thread Size | 0.1900″ | Center of Ball to Under Shoulder | 0.1563″ |
| Center of Ball to End | 0.2800″ |
Product Features
| Remarks | •Two-piece construction.
•Used as reference points for inspection applications in conjunction with Coordinate Measuring Machines to accurately measure the workpiece.
•Concentricity of Ball to Shank - 0.0002 T.I.R.
•Hardened and ground.
•Material: Ball - Carbide Shank - 440 Stainless.
•Weight per 10 pcs. 0.1 lbs. | Country of Origin | USA |
Shipping Info
Package Weight
0.01
