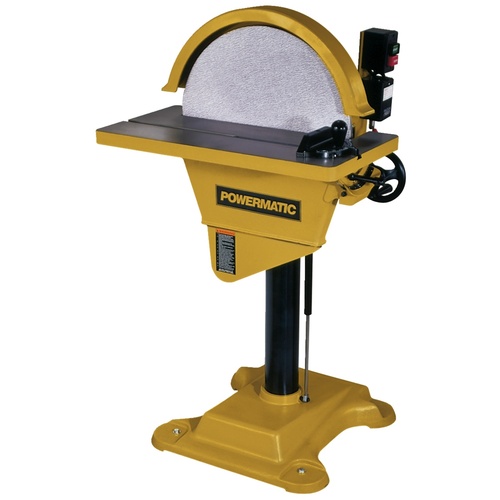

Disc Sander - 20″ Disc,3HP, 230V/460V, 3PH
| Type | Disc Sander | Table Width | 10 1/2″ |
| Disc Diameter | 20″ | Horsepower | 3.0 hp |
| Disc Speed RPM | 1,720 | Table Tilt | 30° up, 45° down |
| Phase | 3 Phase | Voltage | 230 V/460 V |
| Table Length | 27 1/2″ | Model No | DS-20 |
Product Features
| Remarks | •The DS20 20″ Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.
•Disc Diameter 20 ″
•Disc Speed 1720 RPM
•Disc Table Size (L x W) 10–1/2 × 27–1/2 ″
•Disc Table Tilt 30 ° up, 45 ° down
•Dust Port Outside Diameter 4 ″
•Dust Collection Minimum CFM Required 600 cu.ft/min
•Motor Power 2HP, 230V, 1PH
•Overall Dimensions: Height 53″, Width 26.5″, Length 29.5″
•Net Weight 426 pound |
Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
29.50000
Package Width
27.00000
Package Height
50.50000
Package Weight
490
