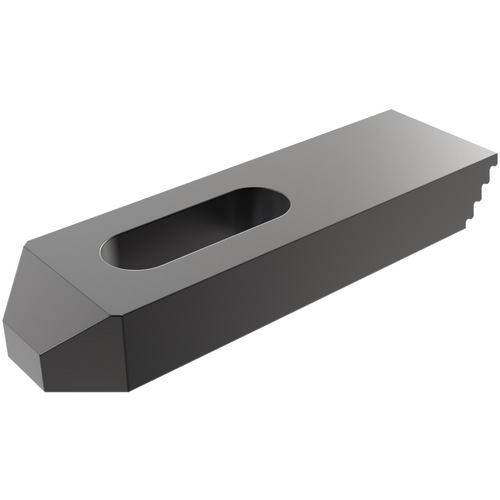

46822 STRAP 25/32 COARSE
| Type | Heel Strap Clamp - Coarse Pitch | Overall Thickness | 1 1/8″ |
| Overall Length | 8″ | Bolt Size | 3/4″ or M20 |
| Maximum Clamping Angle | 2 1/4″ | Nose Height | 3/8″ |
| Minimum Clamping Angle | 25/32″ | Nose Diameter | 5/8″ |
| Material | Steel | Clamp Length | 8″ |
| Finish | Black Oxide | Clamp Width | 1 3/4″ |
| Model No | 46822 | Nose Length | 5/8″ |
| Overall Width | 1 3/4″ |
Product Features
| Remarks | •Material: C-1018. •Finish: Black Oxide. •Heat Treat: Case Hardened 50-54 R30N. •Available in FixtureProTM Design Software. | Country of Origin | USA |
Shipping Info
Package Length
8.10000
Package Width
1.10000
Package Height
1.70000
Package Weight
2.48
