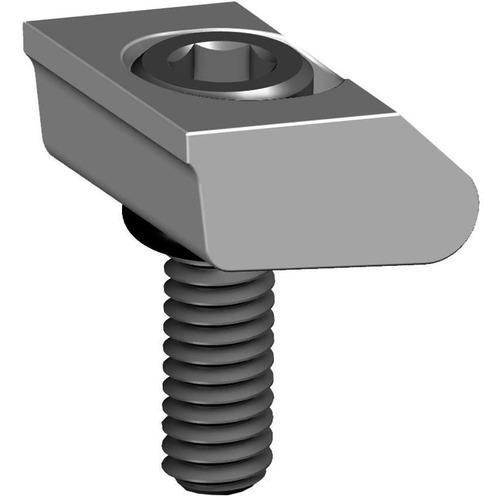

TOOL STEEL BLUNT ED 26030

| Type | Blunt Edge Pitbull Clamp | Holding Force | 1,500 lbs |
| Thread Size | #8-32 | Standard Pack | 8 |
| Overall Width | 1/2″ | Style | Inch |
| Material | Tool Steel | Flange Thickness | 0.100″ |
| Torque | 45 | Centerline Distance | 0.200″ |
| Model No | 26030 | Slot Depth | 0.187″ |
| Slot Width | 1/2″ | Thread Depth | 0.390″ |
| Clamp Height | .100″ | Thread Length | 0.390″ |
| Total Throw | .016″ |
Product Features
| Remarks | •Use Pitbull® Clamps and machine with confidence
•The Pitbull® Clamp is a revolutionary new fixture clamp with positive down force and a low gripping profile
•High vertical and horizontal clamping forces are generated, considering the size of the Pitbull® Clamps
•It uses a standard cap screw and an oil resistant O-ring. | Country of Origin | USA |
Shipping Info
Package Length
5.12500
Package Width
4.12500
Package Height
.40400
Package Weight
0.136
