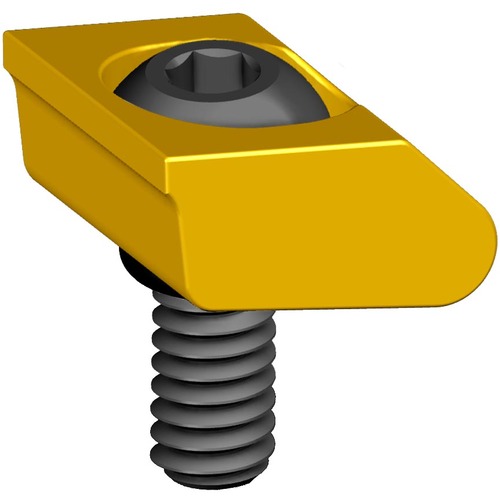

Model 26040 - 8-32 Thread Size - Brass, Blunt Edge Pitbull Clamp
| Type | Blunt Edge Pitbull Clamp | Total Throw | .016″ |
| Thread Size | #8-33 | Holding Force | 400 lbs |
| Overall Width | 1/2″ | Standard Pack | 8 |
| Material | Brass | Style | Inch |
| Torque | 25 | Centerline Distance | 0.200″ |
| Model No | 26040 | Slot Depth | 0.187″ |
| Slot Width | 1/2″ | Thread Depth | 0.340″ |
| Clamp Height | .100″ |
Product Features
| Remarks | •Use Pitbull® Clamps and machine with confidence •The Pitbull® Clamp is a revolutionary new fixture clamp with positive down force and a low gripping profile •High vertical and horizontal clamping forces are generated, considering the size of the Pitbull® Clamps •It uses a standard cap screw and an oil resistant O-ring. | Country of Origin | USA |
Shipping Info
Package Length
5.80000
Package Width
5.00000
Package Height
.01000
Package Weight
0.16
